Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity

Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity

    • Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity
    • Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity
    • Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity
    • Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity
  • Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity

    تفاصيل المنتج:

    Place of Origin: CHINA
    اسم العلامة التجارية: chuangxin
    إصدار الشهادات: ce
    Model Number: XD-D

    شروط الدفع والشحن:

    Minimum Order Quantity: 1 sets
    الأسعار: negotation
    Packaging Details: packing
    Delivery Time: 30 days
    Supply Ability: 10 sets per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Production capacity: 2000sqm Warranty: 1 years
    Automatic grade: Automatic

    Automatic Building Wall Panel Making Machine with 2000sqm Production Capacity

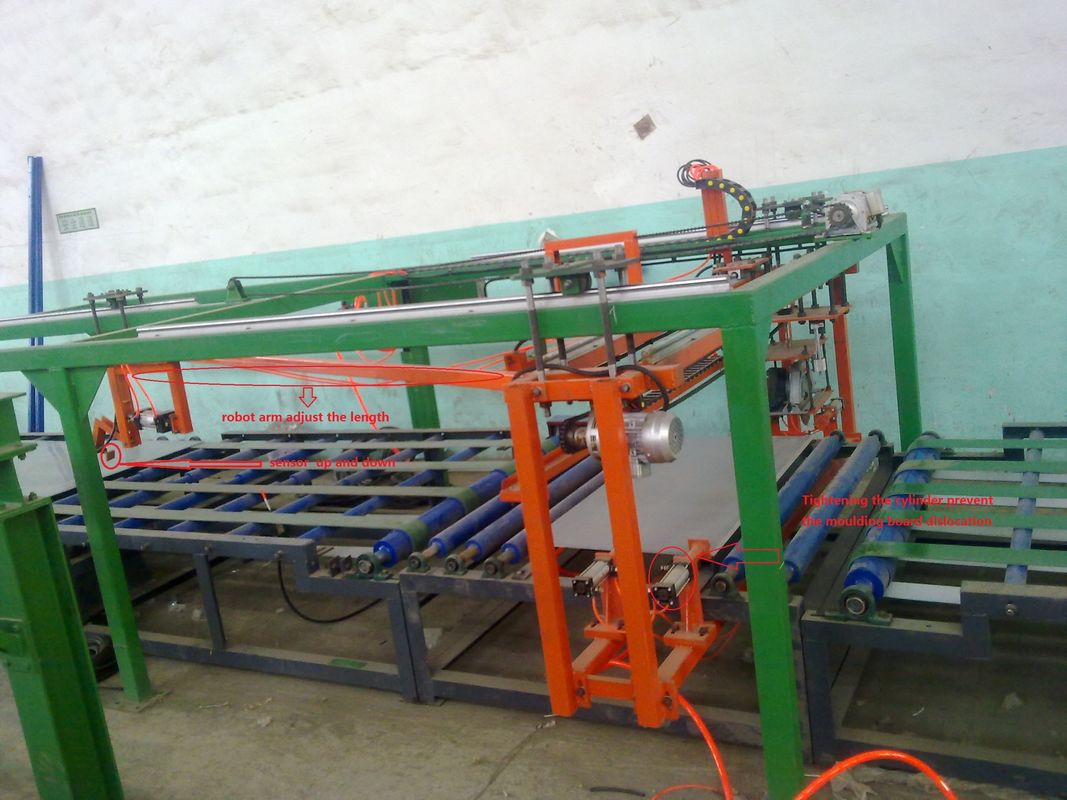

    full automatic magnesium oxide   wall panel making production line with 2000SQM

    MAIN TECHNICAL SPECIFICATION



    The length of the production line:38000mm × 2200mm × 2800mm

    Total Weight: about 24000KG

    Main  Power: 35KW

    Working Speed: 4m/min

    Material : 45# steel, quenched HRC 58-62

    Electric Standard: 380V / 50 HZ / 3 PHASE

    Feeding Width: 1150mm /1200m

    Effective Width: 950mm

    Thickness of the coil: 0.3-0.8mm

    Density of EPS:18KG/M3

    Output: 600,000m2 per year

    Thickness of the material:0.4-0.8mm

    Width of Material:1200mm Max



    Core Material:EPS Board

    Production line speed:3-5m/min

    Production width:1000mm/960mm

    Production thickness:50mm-150mm

    EPS Sandwich panel machine is made up of color of tiles and core of EPS

    Application: Public construction, roof and wall of workshop, building, both etc

    Function:wall panel ,roof panel

    Characteristic:quick construction ,everlasting,beautiful





     Automatic Building Wall Panel Making Machine with 2000sqm Production CapacityAutomatic Building Wall Panel Making Machine with 2000sqm Production Capacity
