Magnesium Oxide Board Manufacturing Process Line , Automatic Batch Turning Gypsum Board Machine
MGO Board and EPS Connecting With Larger Capacity 1500 sheets
steel sheet+rock wool
steel sheet+glass fiber wool
galvanized sheet+paper honeycomb
galvanized sheet+aluminum honeycomb
calcium silicate board-EPS
MGO board, partiton board, magnesium board, dragon board
Materials: Magnesium chloride, magnesia, alkali endured epoxy cloth, perlite
(Without harmful elements: Asbestos, formaldehyde, benzene)
Production Technology: Machine rollering, moulding, laminating, preservation, halogenation, rinse, drying, affixing with poly board (if required by client), fixing length and width, chamfering (if required by client), packing
Features: Free from smell and poison, non-flammable, free from smog, high intensity, light quality, sound insulation, heat preservation, waterproof, fireproof, free from freeing and erosion, minuteness expanding & shrinking ratio, free from crack and distortion, convenient construction, low wastage and long life, etc.
Application: Adoptable to partition and suspended ceiling in decoration of buildings, the structure for heat preservation sound insulation wall, places with dampness, mobile partition, special class fire prevention, sandwiched plate in fireproof gate and packaging of equipment cases.
Dosage control system
Automatic batch turning system
Microcomputer control system
Dust collection system
Elevating conveying system
Automatic measure system
Shell fabric mixing system
Middle material mixing system
Pulp stock mixing system
Accessories dressing by screen system
Blending agent dessolving system
Blending agen dessolving and automatic measurement system
Vacuum compressed air control system
Automatic mould system
Forming conveying system
Rolling forming system
Automatic cutting board system
Automatic collecting board twinlift system
Computer touching control system
Speedup rod road
Loading vehicle changing tracksystem

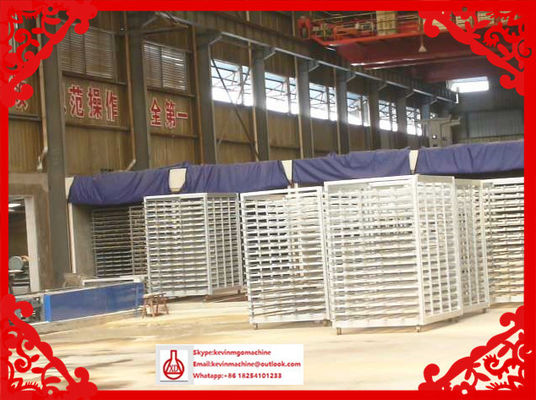

Constant temperature system in curing room
Curing room automatic humidity controlled system
Automatic stripping system
Automatic stacking board system
Arranging board system
Rod road conveying system
Horizontal and perpendcular high speed cutting machine
Landscape orientation conveyor
Dust collection system
Microcomputer self-control system
Power distributing system

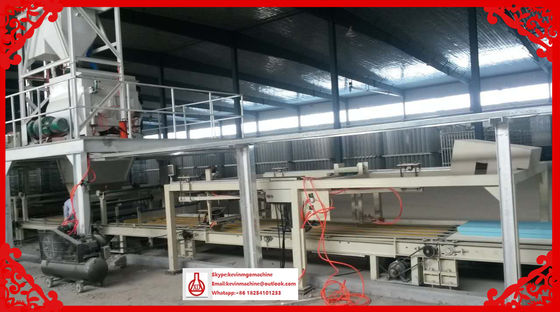

1. Production line has good design, reasonable structure, stable running and using dual-channel roll-style system. It is shaped in one time and has stable thickness. Also it has higher yield. with a vibration device, it eliminates the inside and outside bubbles. It can produce 2-60mm thickness MOG board. And the widest is 1300mm, for the length, there is no limits, and can adjust the thickness as required.
2. The equipment can have many uses. It can produce the simulation ash board, imitation red/white elm board, Oak panels, fireproof relief door board, ceiling board and wall murals etc.
3. Simulation Ash board, it has high quality cooperation with wood ash board appearance. Can do further work such as nail, sawing, planning, and sticky. Size: 1200*2440*3mm (can adjust). Daily can produce 200-1200 PCS according to different devices.
4. Fire Relief door board: Has ability of fire resistant, moisture resistant, sound insulation and thermal insulation. Also can do nail, sawing, plane, sticky work. The cost is half of wooden door board. The imitation of Europe and classical three-dimensional pattern is very elegant and antique.
5. Decorative Wall Murals: First get board from laminator machine, veneer on above and then finish to produce landscapes, insects and fish paintings. The biggest size is 1200*2500mm.
6. For MOG Board Production line, there are several departments: Produce departments, finished products department and raw materials department. Workers need: 3-6
7. Electricity: 1.1_10KW
8. Machines: High-speed mixer, 500type raw materials mixer, pulverizer, mould receiving machine, raw materials lifter, forming machine, foaming machine, oil-spreading machine, automatic cutter, double location receiving board system, automatic board-unloading unit, mould-cleaning machine, automatic four-edge cutting machine, dust-collection system, operation platform, PLC self-controlling system
9. There are many mould machines for customer to chose. Also can buy single machine.
10. Buying the production line includes the technology transferring costs.
11. Cultivate 2 technicians for customer side, and time is 7 days.
