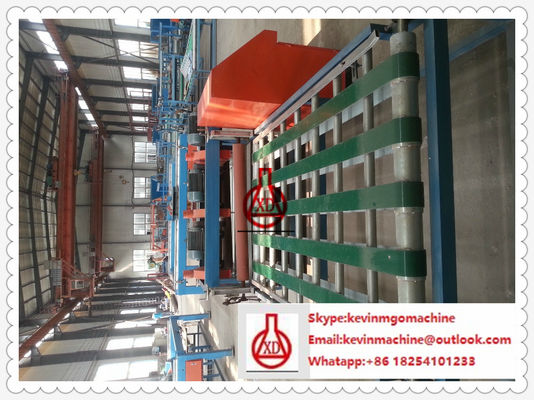

Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration

Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration

    • Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration
    • Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration
    • Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration
    • Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration
  • Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: chuangxin
    إصدار الشهادات: CE
    Model Number: XD-A

    شروط الدفع والشحن:

    Minimum Order Quantity: 1 set
    الأسعار: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 Sets per year
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Product Name: roof tile machine raw material: Mgo,mgcl,fiber glass mesh
    type: free standing

    Colour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration





    Our machine features high durability and good appearance. Welcome to inquiry our machines, we will offer the lower price and better delivery time.

    2. Raw material and cost analysis

    The product is formed with crushed crop straw or sawdust and some inorganic

     chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily

    for customers.

    Take specification of 1.22mX2.44mX3mm as example, the cost is 7~8 Yuan, and

     the market price is generally 13~16 Yuan.




    3. Technology features

    There is not any requirement about high temperature and high pressure during

    production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This

     is a green environmental-protection project, because that there is no waste water, waste materials and waste

     gas during its production processing. The finished board don't need high

     temperature drying, air-drying and watering, and under the normal temperature,

    they will dry well indoor.



    mgo board machine

              Specifications
    100% no asbestos MGO roof tile
    1)heat insulation
    2)soundproof
    3)waterproof
    4)good acid and alkali resistance
    100% no asbestos MGO roof tile

    Material:
    1. Surface side: AL Foil.
    2. Core: Gelled MGO reinforced with fibreglass.

    Size:
    Roof:
    Length: 2900mm, 2100mm or other
    Width: 960mm
    Thickness: 5.5mm(+-0.5mm)
    Weight: 10.5kg/m(+-1kg)

    Ridge size:
    Length: 1100mm
    Width: 720mm
    Thickness: 5.5mm(+-0.5mm)
    Weight: 8kg/m(+-0.5kg)

    Advantages:
    1. High quality, elegant and uniform
    2. High strenth, durable and maintenance-free
    3. Environment-protected, hygienic, non-radioactive
    4. Fire-proof, non-combustible
    5. Better heat Insulaton than other tiles
    6. Insulaing, non-conductive
    7. Acid-resistant, alkali-resistant

    Applications:
    1. Ceramic, glass lignt factory buildings
    2. Industrial zone, warehous, residence
    3. Chemical electroplating and plastic factory buildings
    4. Textile, paper-making and steam factory buildings
    5. Dyeing and sewage treatment factory buildings
    6. Large pig and chickent farm, feed mill
    7. Steel structure projec

      Colour Glazed Profile Roof Tile Making Machine for House Roof Building DecorationColour Glazed Profile Roof Tile Making Machine for House Roof Building Decoration
