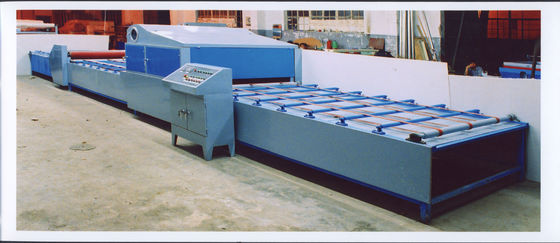

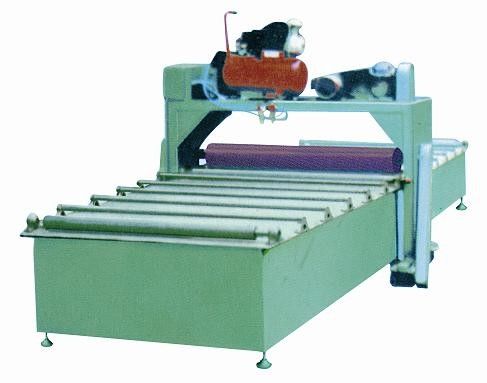

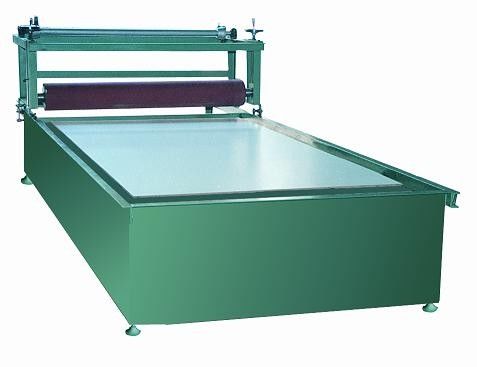

Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

    • Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
    • Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
    • Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
    • Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
  • Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: chuangxin
    إصدار الشهادات: CE
    Model Number: XD-3

    شروط الدفع والشحن:

    Minimum Order Quantity: 1 set
    الأسعار: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 30 working days after received your payment
    Payment Terms: T/T, L/C
    Supply Ability: 50 Sets per year
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Product Name: Door machine Production capacity: 150 Sheets
    texture of material: steel Warranty: 1 years
    Automatic grade: Automatic raw material: Mgo,mgcl,fiber glass mesh
    Standard: CE type: free standing

    Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

    PVC vacuum forming machine, Absorbing Machine,Vacuum Forming Machine

    Fetures

    Suitable for PVC, PE, PET, PC, PP, HIPS, APET, PETG, PS etc, heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
    This machine is widely use in blister sample making, also can be used in small batch production.



    1.25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
    2.25pcs Solid state voltage regulators, control heating boards simple and visualized.
    3.Large-scale cooling fan which can cool the products quickly.
    4.Water-spray cooling system which suit for thick material.(optional)
    5.Manual and Semi-auto style.



    Parameters
    Model LK-61
    Power supply AC380 50HZ
    Power 12.5KW
    Forming size 560*610mm
    Max. forming height 200mm
    Speed 200~300moulds/H
    Thickness of material 0.2~1.5mm
    Machine size 1800*1200 *2000mm
    N. weight  600KG

    1. This machine adopts automatization control and vacuum negative (positive)

    pressure technology with steel frame structure, exchangeable worktable, compact

    structure, beautiful appearance as well as easy and safe operation. With small

    covering area, it has no special requirement for workshop and infrastructure. The

     personnel can get relevant technology directly after short-time training.

    2. Wide application: The machine can realize the optimum design without the

    restriction of board quality, surface structure and shape. One box can overlay

    several work pieces.

    3. High production efficiency, low labor intensity, short production period, small

    investment and quick effect. At the same time, the one machine can manufacture

    several products.

    4. Stable technology, big surface-sticking intensity, clean component surface.

    II. Product Specification and Technical Parameter

    Name: Vacuum Plastic Absorbing Machine  Outside Size: 6670×1768×1220(mm)

    Power Supply: four-wire 380/220v        Power:    KW(According to different

    equipment model)

    Control and Driving Method: Automatic and Manual

    III. Performance and Feature of Plastic Absorbing board

    1. Performance

     (1) High waterproof performance: The sample was water-tight in water (30cm

     high) for 24 hours.

     (2) Anti-pollution. For all kinds of dirty, it can be cleaned up and bright as before.

     (3) Good anti-combustion performance and bond performance, high strength as

    well as no fall off.

     (4) Anti-corruption and anti-high temperature. With the various kinds, they can be

     used at different environment.

     (5) Rich of noble and elegant design, the decorating surface has several visual

    effect, such as “bright light and dull bright light”. And it need not painting.

    2. Application scope

     (1) Door & Window Series: European-style door, Chinese-style door, door (window)

    frame, buckled board as well as all kinds of bottom line and pressed-line.

     (2) Furniture Series: Tabletop, table-board, cabinet door and complete kitchen.

     (3) Deformed decorating component for car and boat as well as the making of

    sound box.

    3. Operation Feature:

     (1) Easy operation. You can install them on site without keel frame, so it will save

    the purchasing fee for electrical tool and the relevant materials.

     (2) It will short the operation period and reduce the labor intensity of worker.

     (3) It can save paint and 70% woodworking fee.



    After purchased the equipment, our company will take responsibility for trainning

     technical personnel until he can get the skill.

    There are many professional technical personnel in our company, they will offer

     consultation about the equipment and technology as well as technical training on

     site for free. And they will go to your factory for installation and testing for free.

    Welcome you to our company for a site visit, we will service for you sincerely    Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPSSteel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
