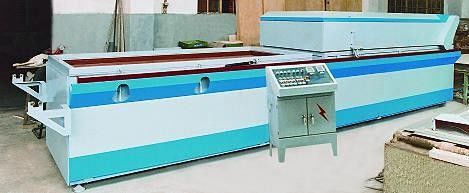

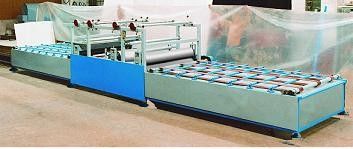

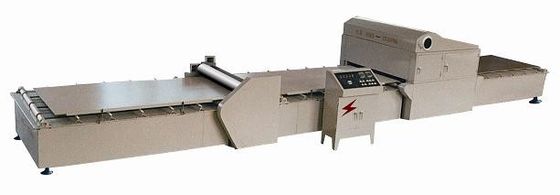

Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology

Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology

    • Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology
    • Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology
    • Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology
    • Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology
  • Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: chuangxin
    إصدار الشهادات: CE
    Model Number: XD-3

    شروط الدفع والشحن:

    Minimum Order Quantity: 1 set
    الأسعار: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 30 working days after received your payment
    Payment Terms: T/T, L/C
    Supply Ability: 50 Sets per year
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Product Name: Door machine Production capacity: 150 Sheets
    texture of material: steel Warranty: 1 years
    Automatic grade: Automatic raw material: Mgo,mgcl,fiber glass mesh
    Standard: CE type: free standing

    Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology



    Vacuum forming machines is suitable for processing those reeling sheets including PVC, HIPS, PSP, PP, PET etc. Under various specifications, it can be used for the forming of disposable fast-food containers, instant noodle bowls, western dinner plates, food coverings (such as sugar boxes, cake boxes and etc), articles of daily use, hardware coverings, children's toys and trays for raising seedlings of rice, vegetables and other plantations.

    Major Construction Features:

    1. This machine adopts advanced PLC controlling system; It can automatically finish a series of tasks including feeding, heating, thermoforming, cooling, drawing off patterns, cutting and stacking.
    2. It's equipped with a feeding device of a precision retarding electric machine, and geared by a double-lined needle-point chain, this machine can achieve both accuracy and stability during high-speed operations; What is more, it is also easy to make quick adjustments so as to make good use of the plastic sheets to reduce waste.
    3. Equipped with a unique divided temperature control system and a precision remote infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.
    4. This machine also possesses some special features: It can be manually pre-started, the switch console can be moved up and down according to needs, it can achieve a delaying vacuum state or a vacuum state for a second time, and it can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to accelerate the forming speed and ensure the quality of the products.
    5. The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machineI. Product Structure and Feature

    Feature:

    1. This machine adopts automatization control and vacuum negative (positive)

    pressure technology with steel frame structure, exchangeable worktable, compact

     structure, beautiful appearance as well as easy and safe operation. With small

    covering area, it has no special requirement for workshop and infrastructure.

    The personnel can get relevant technology directly after short-time training.

    2. Wide application: The machine can realize the optimum design without the

    restriction of board quality, surface structure and shape. One box can overlay

     several work pieces.

    3. High production efficiency, low labor intensity, short production period, small

     investment and quick effect. At the same time, the one machine can manufacture

     several products.

    4. Stable technology, big surface-sticking intensity, clean component surface.

    II. Product Specification and Technical Parameter

    Name: Vacuum Plastic Absorbing Machine  Outside Size: 6670×1768×1220(mm)

    Power Supply: four-wire 380/220v        Power:    KW(According to different

    equipment model)

    Control and Driving Method: Automatic and Manual

    III. Performance and Feature of Plastic Absorbing board

    1. Performance

     (1) High waterproof performance: The sample was water-tight in water (30cm

    high) for 24 hours.

     (2) Anti-pollution. For all kinds of dirty, it can be cleaned up and bright as before.

     (3) Good anti-combustion performance and bond performance, high strength as

    well as no fall off.

     (4) Anti-corruption and anti-high temperature. With the various kinds, they can

    be used at different environment.

     (5) Rich of noble and elegant design, the decorating surface has several visual

    effect, such as “bright light and dull bright light”. And it need not painting.

    2. Application scope

     (1) Door & Window Series: European-style door, Chinese-style door, door

    (window) frame, buckled board as well as all kinds of bottom line and pressed-line.

     (2) Furniture Series: Tabletop, table-board, cabinet door and complete kitchen.

     (3) Deformed decorating component for car and boat as well as the making of sound

     box.

    3. Operation Feature:

     (1) Easy operation. You can install them on site without keel frame, so it will save

    the purchasing fee for electrical tool and the relevant materials.

     (2) It will short the operation period and reduce the labor intensity of worker.

     (3) It can save paint and 70% woodworking fee.



    After purchased the equipment, our company will take responsibility for trainning

     technical personnel until he can get the skill.

    There are many professional technical personnel in our company, they will offer

    consultation about the equipment and technology as well as technical training on

    site for free. And they will go to your factory for installation and testing for free.

    Welcome you to our company for a site visit, we will service for you sincerely  Multi Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure TechnologyMulti Functional Vacuum Moulding Machine with Vacuum Negative / Positive Pressure Technology
