Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness

Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness

    • Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness
    • Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness
    • Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness
    • Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness
  • Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: chuangxin
    إصدار الشهادات: CE
    Model Number: XD-A

    شروط الدفع والشحن:

    Minimum Order Quantity: 1 set
    الأسعار: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 Sets per year
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Product Name: roof tile machine Production capacity: 1000 Sheets
    texture of material: steel materials Warranty: 1 years
    Automatic grade: Automatic raw material: Mgo,mgcl,fiber glass mesh
    Standard: CE type: free standing

    Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness



    automatic Magneisum Oxide Roof Tile Making machine,Roof Tile Making Machine

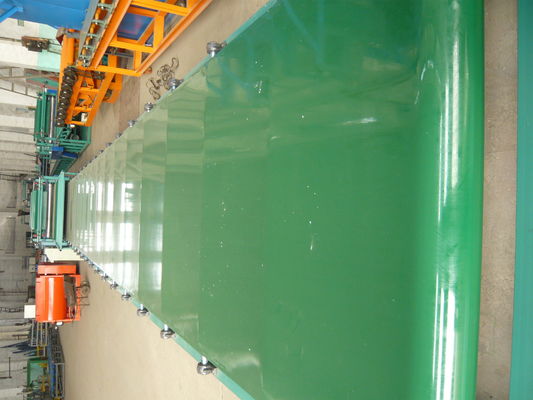

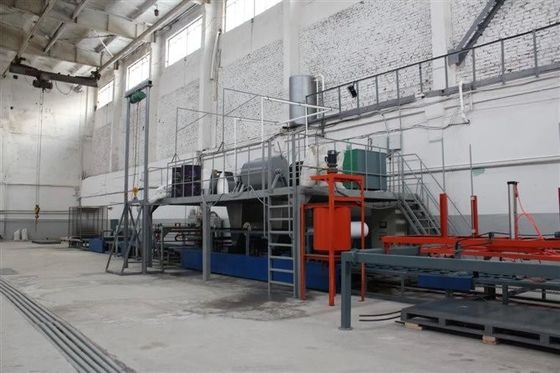

    Magneisum Oxide Roof Tile Production Line





    1. Specification of Roof Tile:

       Length: biggest length is 6m.

       Width: Maximum 97cm (Adjustable)

       Thickness: 3mm~6mm (Adjustable)

       Standard Specification in China is 1.8mX0.72m

    Kind

    Specification(mm)

    Parameter of Weight(kg/Piece)

    Big Wave

    1800×750×4~5

    17



    1800×900×5~18





    1800×600×3~5

    14

    Small Wave

    420×330×5

    3

      Automatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable ThicknessAutomatic Magneisum Oxide Roof Tile Making Machine for 3mm - 6mm Adjustable Thickness

    2. Machine Model:

    According to different production capacity from 300 tiles to 900 tiles per eight hours the tile-making

    machine has different models for large-scale, middle-scale and small-scale.

    All machine can produce tile with same best-quality and specification board, only has different production

    capacity.

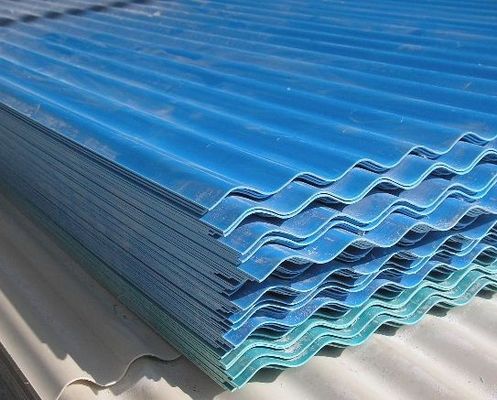

    3. Application of Roof Tile

    The roof tile produced by our machine with all kinds of waves and heat-preserving layer, which will be

    used at the roof as the substitute of traditional asbestos tile, color steel tile and cement tile. There is

    asbestos in the asbestos tile which include carcinogen.



    4. Tile performance:

    Performance

    Standard

    Test Value

    Transverse breaking-resistance

    7/3000N/M

    4900 N/M

    Vertical breaking-resistance

    7/200 N/M

    320N/M

    Anti-impact force

    No chap, peeling and crack

    None

    Water absorption

    26%

    14%

    Imperviousness

    No spot and water drop on the back

    of pantile after it was watering

    None

    Frost resistance

    No phenomenon of layer-producing after 25 times freezing-thawing

    No phenomenon of layer-producing

    Artifical chalking grade

    None

    None

    Climate Aging Change Grade

    ≤2

    None

    Climate Aging Chromatism Grade

    E≤3

    0.66

    5. After-sale

    After purchased the equipment, we will teach relevant technology for free, and will go to your factory for

    installation and testing until you can produce the qualified product by yourself. Our company will train

    2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical

     consultation and following-up service for a long time, the equipment warranty period is one year
